| range of product |

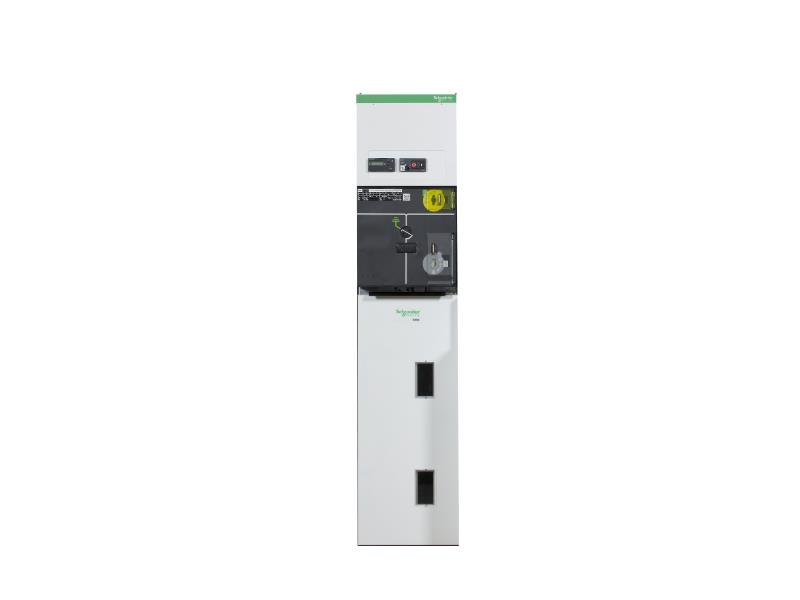

SM6-24
|
|
|---|---|---|
| technology type |
Air insulated switchgear
|
|
| device short name |
GIM 375
|
|
| product or component type |
Case
|
|
| internal arc protection |
12.5 kA 0.7 s
|
|
| Rated frequency (fr) |
50 Hz
|
|
| service voltage (Us) |
15…20 kV
|
|
| Rated lightning impulse withstand voltage (Up) |
125 kV peak
|
|
| Rated voltage (Ur) |
24 kV
|
|
| Rated normal current (Ir) |
400 A
|
|
| rated short-time withstand current (Ik) |
12.5 kA rms 1 s
|
|
| Rated short-duration power-frequency withstand voltage (Ud) |
50 kV rms 50 Hz for 1 min
|
|
| VPIS |
20 kV
|
|
| standards |
NF C 13-200
IEC 62271-100:2012 |
| bus rated current |
400 A
|
|
|---|---|---|
| provided equipment |
Heating resistor
|
|
| net weight |
100 kg
|
|
| width |
375 mm
|
|
| depth |
940 mm
|
| ambient air temperature for operation |
-5…40 °C
|
|
|---|---|---|
| ambient air temperature for storage |
-40…70 °C
|
|
| IP degree of protection |
IP2x
|
|
| vibration resistance |
0.5 gn horizontal class 2
0.4 gn vertical class 2 |
|
| operating altitude |
<= 1000 m
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
35 kg
|
|
| Package 1 Height |
160 cm
|
|
| Package 1 width |
84 cm
|
|
| Package 1 Length |
37.5 cm
|
| EU RoHS Directive |
Not applicable, out of EU RoHS legal scope
|
|---|
| Warranty |
18 months
|
|---|
